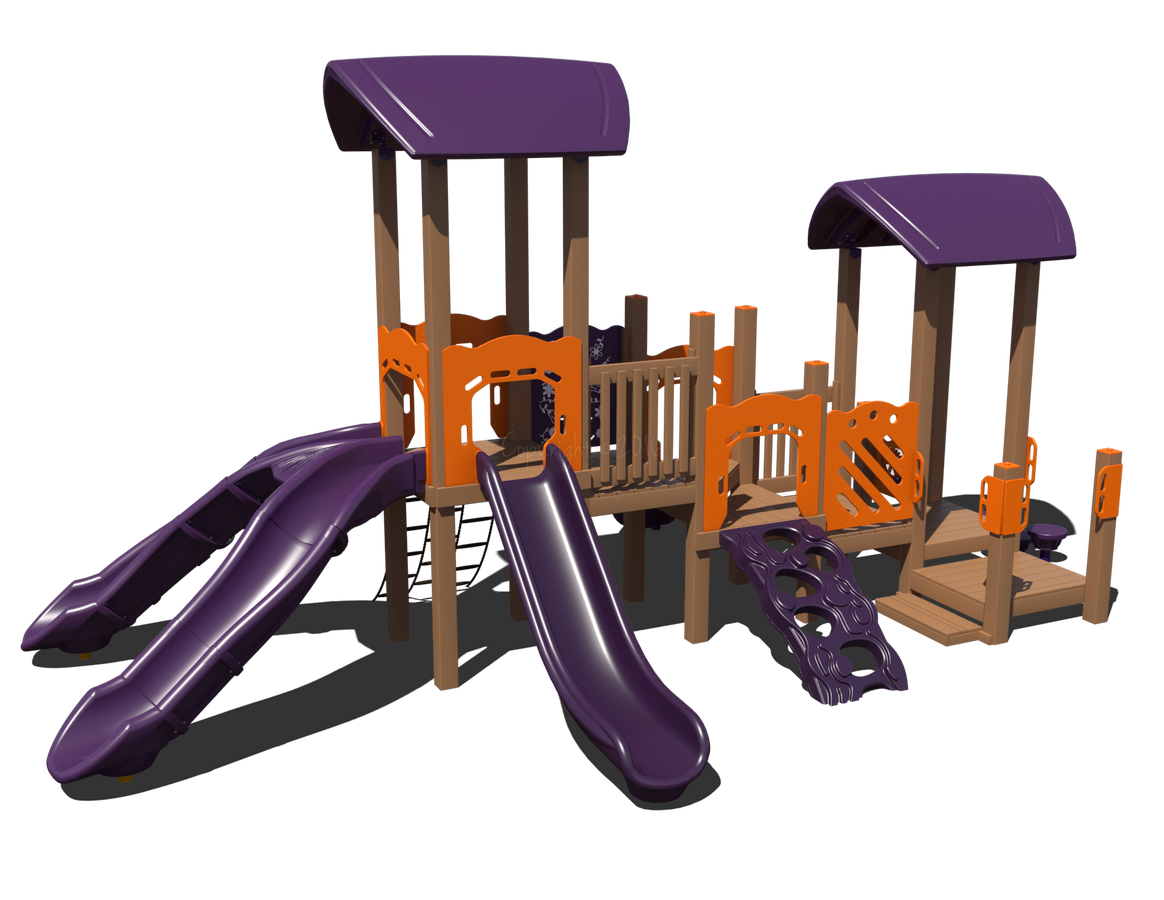

Playground System GFP-30568
Compact multi-activity playground system designed for ages 2 to 12, combining slides, climbers, and interactive panels in a space-efficient layout that supports high engagement.
Specifications
Model Number: GFP-30568
Age Group: 2–12 Years
User Capacity: 58 Children
Structure Size: 19' x 30'
Use Zone: 31' x 42'
Surface Area: 950 sq ft
Fall Height: 5 Feet
Estimated Timber Count: 32
Elevated Play Activities: 5
Ground-Level Accessible Activities: 2 Provided (2 Required)
Play Components
Straight Single Slide
Curved Double Slide
Curved Single Slide
Cargo Net Climber
Lava Climber
ADA Transfer Station
Lily Pad Steps
Slotted Panel
Honey Bee Panel
Half Gear Panel
Steering Wheel
Picket Wall Panels
Arched Gable Roofs

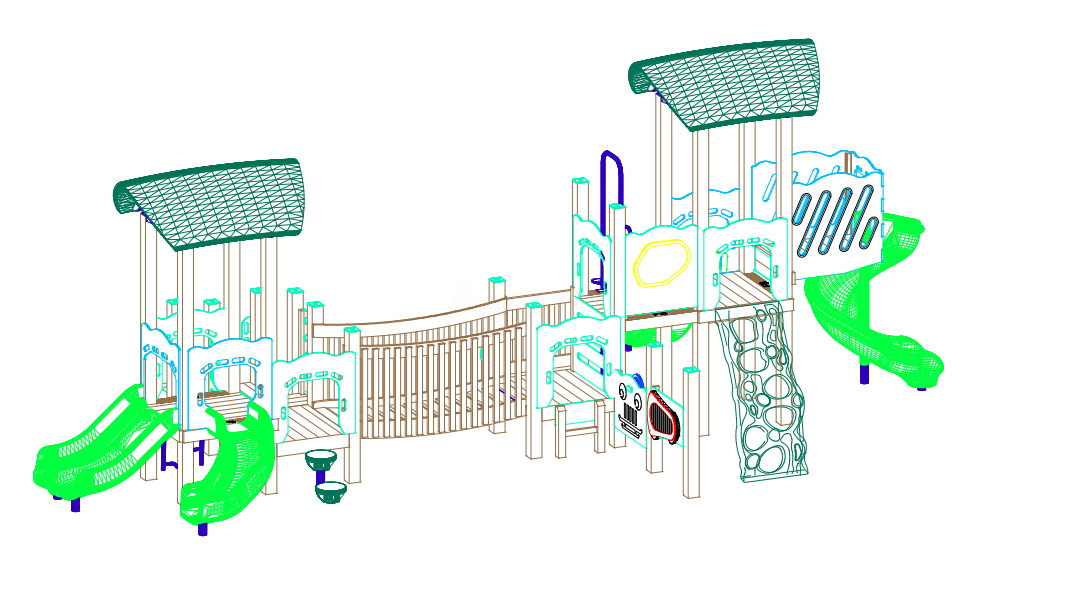

Design Overview
This system is built on a linear multi-deck configuration, creating a continuous play path that encourages movement from one end of the structure to the other. The compact footprint makes it efficient for sites where space is limited but varied play value is still required.
Slide options are distributed along the structure to support balanced use. The curved double slide provides high-capacity throughput, while the straight and curved single slides offer alternative experiences that help reduce congestion.
Climbing elements are positioned to create multiple access points. The cargo net climber, lava climber, and lily pad steps offer a range of difficulty levels, supporting both younger users and more advanced climbers within the broad age group.
Interactive panels are integrated throughout the structure to enhance engagement. These include sensory and imaginative play features that activate both elevated and ground-level areas.
Accessibility
The system includes an ADA transfer station and meets all required ground-level accessibility standards. Accessible play components are positioned to allow inclusive participation without requiring elevated access.
Safety Considerations
The structure maintains a 5-foot fall height, supporting safe play conditions while still providing elevated experiences. A use zone of 31 feet by 42 feet is required. Installation over compliant impact attenuating surfacing is necessary per ASTM F1487.
Applications
Ideal for schools, parks, and mixed-use playground areas where space efficiency and diverse play options are important. Suitable for environments serving a wide age range.
The GFP-30568 playground system is a commercial play structure designed for children ages 2 to 12, accommodating up to 58 users within a 31-foot by 42-foot use zone. Featuring multiple slides, climbers, and interactive panels, this system delivers a balanced and engaging play environment. With a 5-foot fall height and full accessibility compliance, it is well suited for compact installations requiring durability, variety, and inclusive design.
