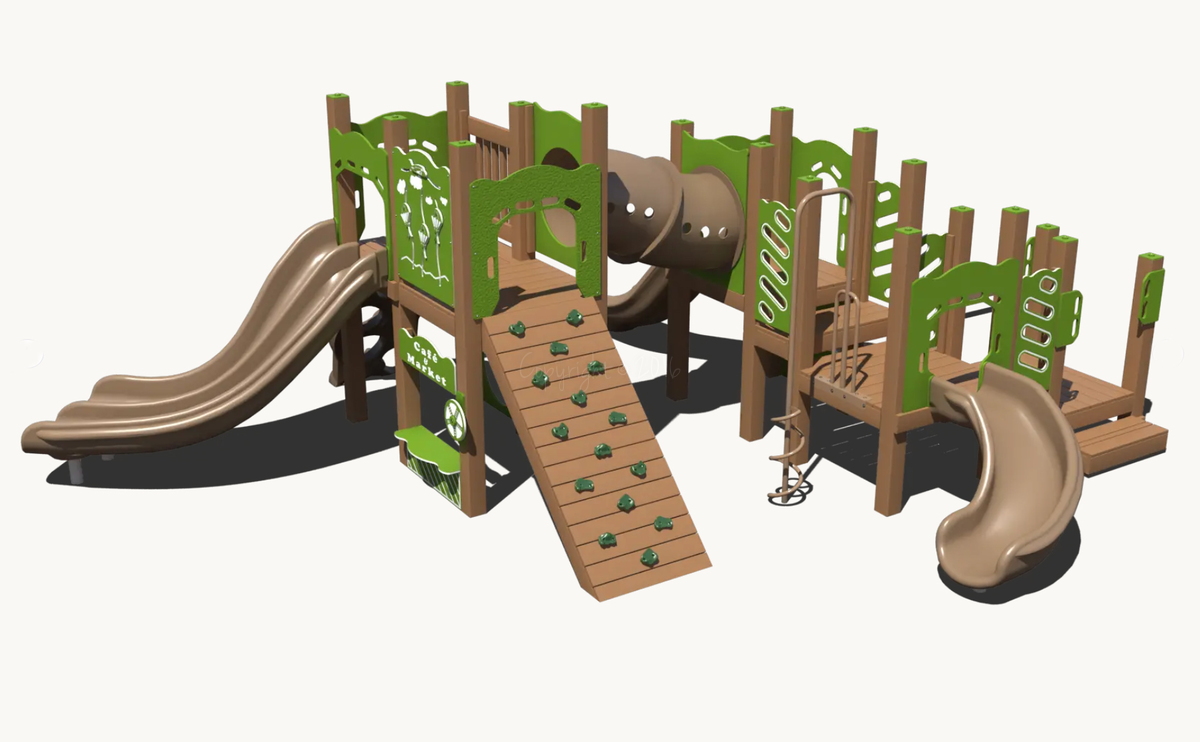

Playground System GFP-30555-1

Mid-size commercial playground designed for ages 2 to 12, offering multiple slide experiences, varied climbing challenges, and interactive panels within a balanced linear layout engineered for continuous circulation and distributed play activity.

Specifications

Model Number: GFP-30555-1

Age Group: 2–12 Years

User Capacity: 53 Children

Structure Size: 21' x 28'

Use Zone: 33' x 40'

Surface Area: 946 Sq Ft

Fall Height: 6 Feet

Estimated Timber Count: 32

Elevated Play Activities: 10

Ground-Level Accessible Activities: 2 Provided (3 Required for Full ADA Compliance)

Play Components

Straight Single Slides (multiple positions)

Curved Single Slide

Open Spiral Slide

Rockin Ramp

Education Climber

Parachute Rock Wall Climber

16 Inch ADA Transition Stair

Single Step with Grab Handles

Picket Wall Barriers

Storefront Panel

Airplane Panel

Half Push Panel

Grab Handles

Design Overview

This playground system utilizes a horizontal deck arrangement that distributes climbing, sliding, and activity events across the full structure to improve circulation and reduce congestion during high-volume use. Multiple access and exit points allow children to move laterally throughout the structure while maintaining strong supervision visibility and consistent activity flow.

The slide configuration is one of the primary strengths of the system. Multiple straight slides provide fast and direct exits for higher throughput, while the curved slide introduces directional movement and the open spiral slide delivers a more dynamic sliding experience. Together, these varied slide events support different user preferences and encourage repeat engagement throughout the structure.

Climbing activities are intentionally varied to accommodate a broad age range and developmental ability levels. The education climber and parachute rock wall climber help promote balance, coordination, upper-body strength, and problem-solving skills, while the Rockin Ramp, transition stair, and step access points provide easier entry routes for younger or less confident users.

Interactive panels integrated throughout the deck line add imaginative and sensory play opportunities while helping activate circulation zones between major play events. The storefront and airplane panels encourage role play and social interaction, while tactile push elements and grab features support sensory engagement and fine motor development.

Accessibility

The structure includes an ADA transfer point and accessible entry through a 16 inch transition stair system. Ground-level accessible play activities are incorporated within the layout, though one additional accessible ground-level activity would be required to fully satisfy standard ADA guideline counts for this configuration.

Safety Considerations

The structure maintains a maximum fall height of 6 feet and requires a minimum use zone of 33 feet by 40 feet. Installation over compliant impact attenuating surfacing is required in accordance with ASTM F1487 playground safety standards. The distributed arrangement of slides, climbers, and circulation paths helps improve user flow while minimizing concentrated conflict zones.

Applications

Well suited for schools, municipal parks, multifamily developments, churches, and community recreation environments serving a broad age range. The linear footprint performs efficiently within rectangular play areas while still delivering varied and high-capacity play value.

The GFP-30555-1 playground system is a commercial play structure designed for children ages 2 to 12, supporting more than 50 users within a 33-foot by 40-foot use zone. Featuring multiple slide configurations, varied climbing activities, sensory play panels, and ADA-conscious access elements, this system delivers a balanced combination of physical activity, imaginative engagement, and efficient circulation. With a 6-foot fall height and scalable accessibility options, it is well suited for high-use playground environments requiring durability, flexibility, and strong long-term recreational value.
