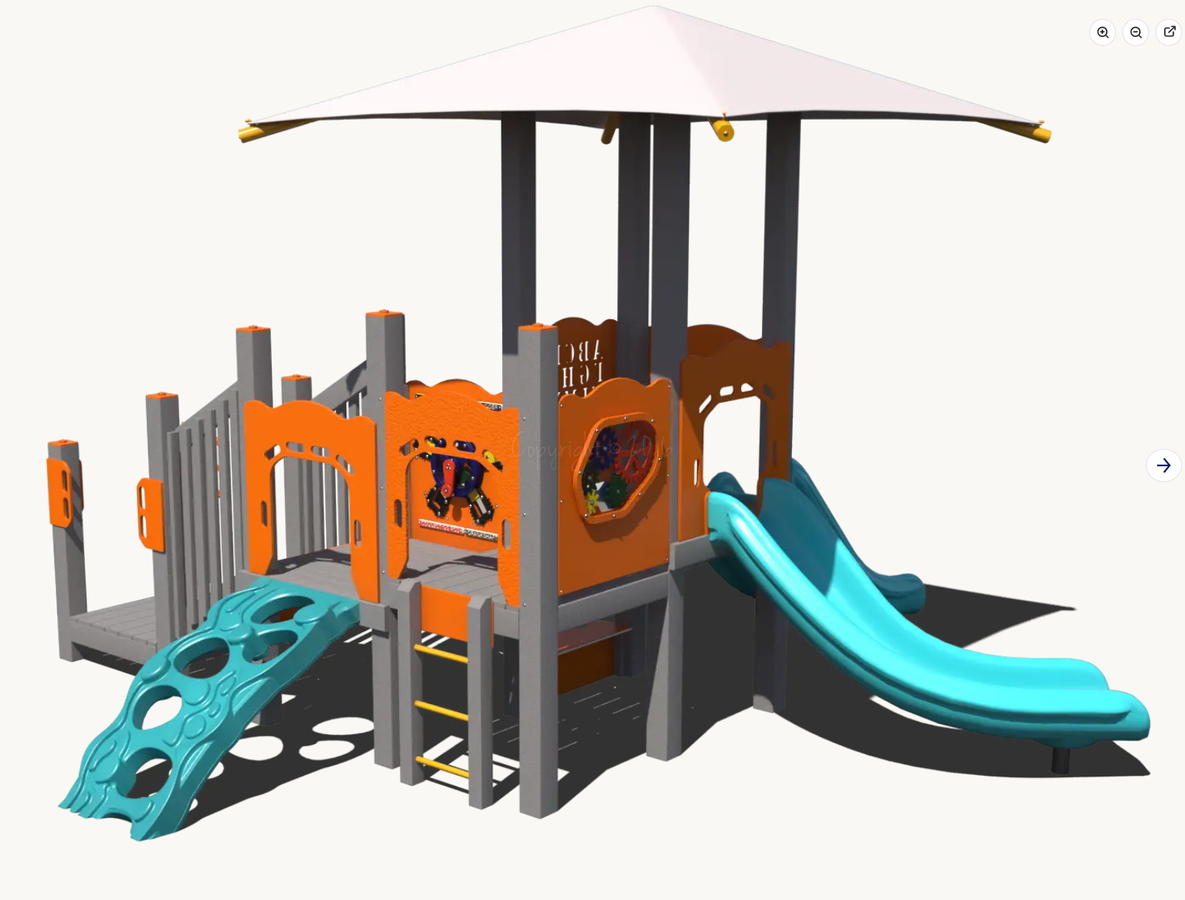

Playground System GFP-30387

Compact elevated commercial playground designed for children ages 2 to 5, combining dual slide experiences, climbing access, interactive sensory play, and integrated shade coverage within a centralized layout optimized for supervision, accessibility, and high play value.

Specifications

Model Number: GFP-30387

Age Group: 2–5 Years

User Capacity: 34 Children

Structure Size: 21' x 19'

Use Zone: 33' x 31'

Surface Area: 690 Sq Ft

Fall Height: 5 Feet

Estimated Timber Count: 27

Elevated Play Activities: 7

Ground-Level Accessible Activities: 2 Provided (2 Required)

Play Components

Double Chute Slide

90 Degree Curved Slide

Lava Climber

Pipe Ladder

24" DTD Steps

ADA Transfer Station

Post Mount Steering Wheel

Driving Panel

Cafe Market Panel

Radial Engine Panel

Gear Panel

Below Deck Bench

10' x 10' Integrated Shade

Design Overview

The GFP-30387 playground system is organized around a centralized elevated platform that efficiently concentrates multiple play activities into a compact and highly functional layout. The design allows children to circulate naturally between climbing, sensory, and sliding activities while maintaining strong visibility for caregivers and supervisors.

The double chute slide creates a high-capacity exit experience that supports simultaneous use and encourages social interaction, while the 90 degree curved slide introduces directional movement and variation in play flow. Together, the slides distribute user movement efficiently and increase replay value.

Access into the structure is intentionally varied to support multiple developmental stages. The lava climber promotes balance, grip strength, and climbing confidence, while the pipe ladder and DTD step system provide alternative access routes for younger or less experienced users.

Interactive sensory and imaginative play features are integrated throughout the structure to activate both elevated and ground-level spaces. The driving panel, radial engine panel, steering wheel, cafe market panel, and gear panel encourage role play, tactile interaction, and social engagement.

The integrated 10-foot by 10-foot shade structure improves comfort and usability in warmer climates by helping reduce direct sun exposure across primary elevated play zones. The below-deck bench area also creates a shaded social and resting space beneath the structure.

Accessibility

The playground includes an ADA transfer station and satisfies the required number of accessible ground-level activities for compliant installation. Interactive play opportunities are positioned at accessible levels to support inclusive participation for users of varying abilities.

Safety Considerations

The structure maintains a maximum fall height of 5 feet and requires a minimum use zone of 33 feet by 31 feet. Installation over compliant impact attenuating surfacing in accordance with ASTM F1487 playground safety standards is required. Distributed access and exit points improve circulation and reduce congestion during active use.

Applications

Ideal for childcare centers, early childhood schools, apartment communities, churches, municipal parks, and compact commercial playground installations requiring strong accessibility integration, shade coverage, and diverse play activities within a limited footprint.

The GFP-30387 playground system is a compact commercial playground designed for children ages 2 to 5, supporting up to 34 users within a 33-foot by 31-foot use zone. Featuring dual slides, climbing activities, interactive sensory panels, accessible transfer access, and integrated shade coverage, this system delivers a balanced and highly engaging play environment focused on movement, imagination, accessibility, and efficient supervision. With a 5-foot fall height and compact footprint, it is well suited for high-use early childhood environments requiring durability, comfort, and strong play value.
